TAW13R300U0100A06

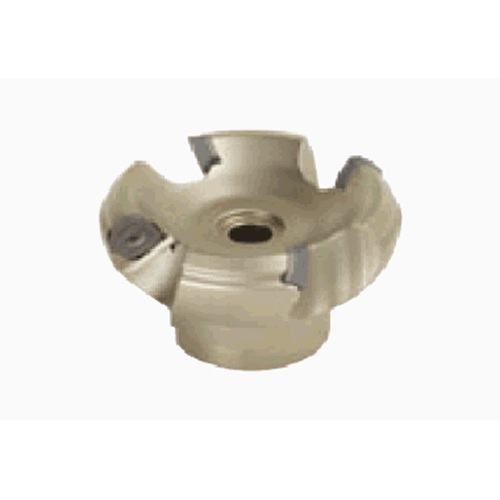

45deg face mills with screw clamped SWMT/SWGT13 inserts.

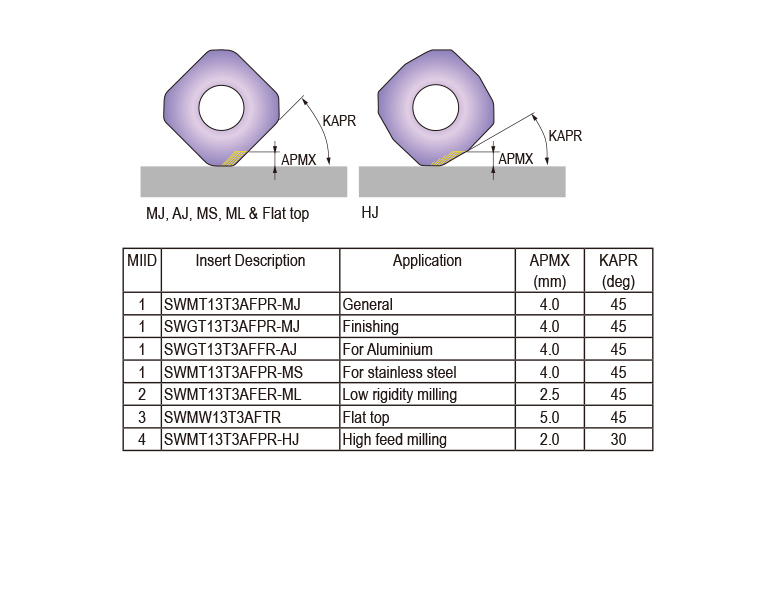

| Cutting Diameter (DC/DCX) | 3.514″ | Master Insert Identification (MIID) | SWMT13T3AFPR-MJ |
| Cutting Diameter (DC) | 3″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 3.514″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 0.197″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Functional Length (LF) | 1.969″ |
| Overall Length (OAL) | 1.969″ | Tool Type | 45 Facemills |
Product Features
| Family Description | 45deg face mills with screw clamped SWMT/SWGT13 inserts. | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. Please see "More info". |
Shipping Info
LocalField10
0
Package Weight
2.672
