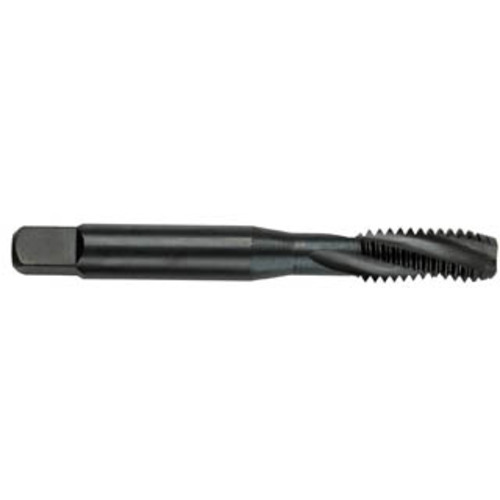

‎5/8″ - 18 4-Flute, H3 Semi-Bottoming Series/List # 2098C Spiral Flute Tap

‹ ›

‎5/8″ - 18 4-Flute, H3 Semi-Bottoming Series/List # 2098C Spiral Flute Tap

Item # MT3361116

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 61116

UPC #: 686125611163

Quantity Available

Thread Diameter Size (TDZ)

5/8″

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Tool Type

High Performance Tap

Overall Length (OAL)

‎3-13/16″

Chamfer

Semi-Bottoming

Thread Cutting Part Length (THL)

3/4″

Coating

TiCN

Flute Count (NOF)

Flute Type

Spiral

Flute Helix Angle (FHA)

17 Degrees

Style

Semi-Bottoming

Applicable Material

Measurement Type

Inch

Cutting Edge Material

HSS-PM

Series/List #

2098C

Product Features

Remarks

‎• HPT†- High Performance Tap†- Hard Materials• Recommended for harder 32Rc-45Rc materials including steel alloys, titanium alloys, nickel base high temp alloys, tool and mold steels and stainless steels.• Spiral Flute Taps are designed to lift the chips out of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge openings, keyways and other interruptions in the tapped hole.• Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For: Hardness / Wear Resistance / Tool Life / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.12500

Package Width

.75000

Package Height

.75000

Package Weight

0.22
